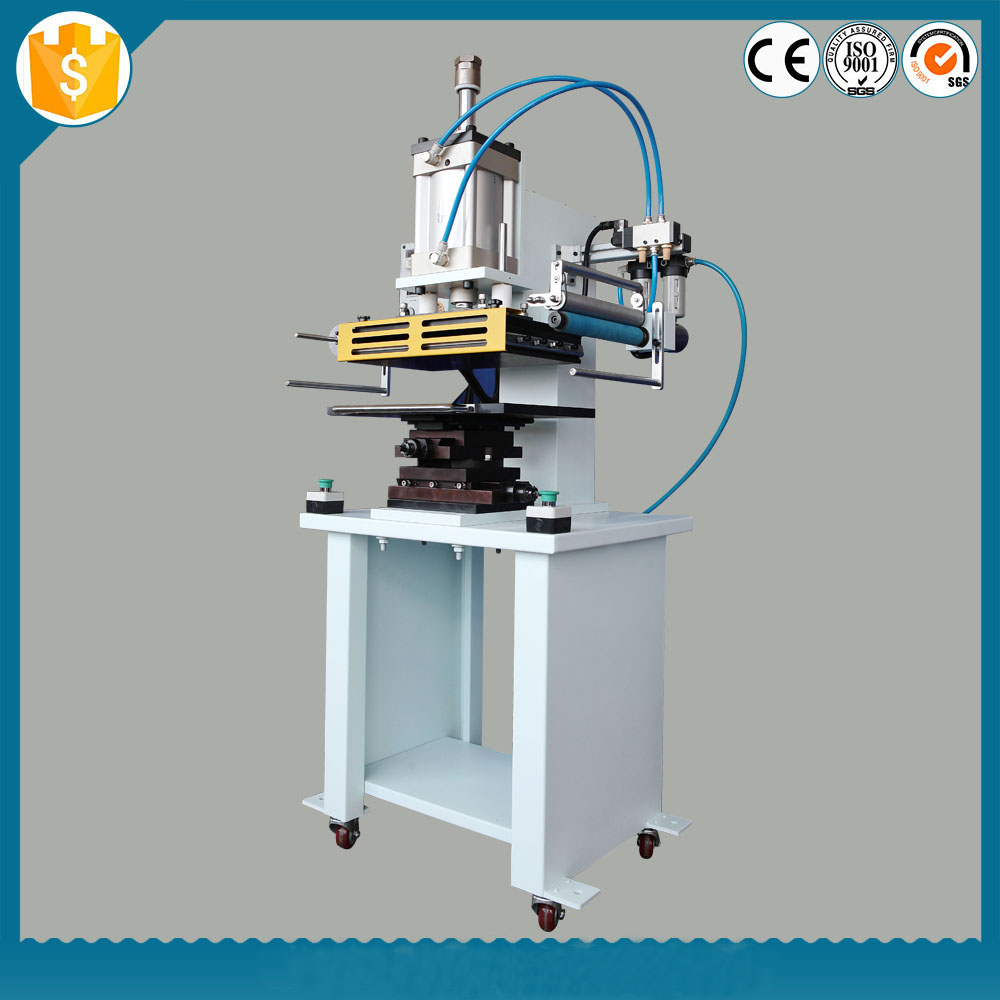

HX378 Pneumatic hot stamping machine
HX-378 Hot Stamping Machine mainly used for hot stamping on various materials, and can also do some small size embossing. With functions of automatic constant temperature controlling, automatic counting, stroke self-setting, fast speed self-setting, return speed self-setting, delay time and pressure maintaining self-setting.CE standard, safety device is equipped: Heat protective cover, Emergency button, Schneider brand Double run buttons.
Description
HX-378 Hot Stamping Machine mainly used for hot stamping on graphics, cards, papers, stationery, leathers and plastics. With functions of automatic constant temperature controlling, automatic counting, stroke self-setting, fast speed self-setting, return speed self-setting, auto set dwell time (impression down time), increased pressure tonnage to 3 Tons over a larger stamping area, auto-foil feed, CE standard, Heat protective cover, Emergency button, digital heat controller with movable table , Double run buttons.
| Model | HX-378C-3T | HX-378D-3T |
| Max. Pressure | 3 Ton | 3 Ton |
| Max. Stamping Size | 310×210mm | 450×290mm |
| Worktable Area | 360×310mm | 510×340mm |
| Max. Working Height | 80mm | 80mm |
| Temperature | 0~300℃ | 0~300℃ |
| Air Supply | 0.8~1.2mpa | 0.8~1.2mpa |
| Total Power | 1kw | 3kw |
| Weight | 300kgs | 320kgs |
| Dimension(LxWxH) | 690×600×1680mm | 690×670×1680mm |
